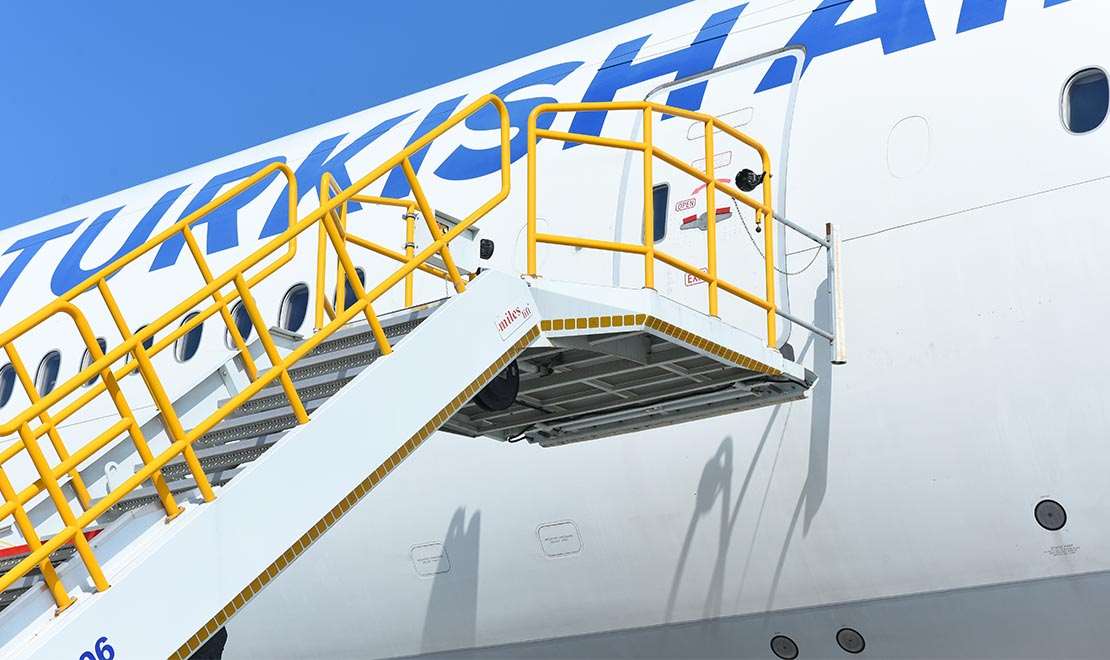

Ladder Maintenance Lift

Miles 6015 Ladder Maintenance Lifts are in daily use at international airports worldwide for aircraft ground support personnel use. Miles GSE designs and manufactures this motorised truck mounted ladder maintenance lift to increase the efficiency of aircraft maintenance operations in airports.

Miles ladder maintenance lift allows customers servicing of aircraft for high level work of up to 5.5m floor height as standard. This product is capable of providing maintenance personnel access to a wide range of aircraft, so other working heights are available as well upon request.

The ladder maintenance lift vehicle mainly consists of truck chassis powered by diesel engine, hydraulically actuated stair lift mechanism, a front service platform and straightdown type stabilizers. High quality hydraulic and electronical system components are offered to the customer to maintain the system reliability and efficiency at the highest level. All the movements of the system are controlled by limit sensors and automation ensuring safe and uninterrupted operation of the system.


Model

Ladder Maintanance Lift (Miles 6015)

Technical Specifications

Chassis: Standard commercial chassis (MAN, Mercedes-Benz, Iveco, Volvo, etc)

GVW:

  • 7.500kg (upgrade to 10.000kg-12.000kg optional)
  • 10.000kg (upgrade to 12.000kg-15.000kg optional)

Ladder Mechanism: Miles ladder system with four hydraulic chassis stabilizers.

Platform Payload: 600kg (other payload upon request)

Max. Working Height5,5m (floor height) (other height upon request)

Electric System: 24V relay or PLC computer

Typical Options:

  • Rotating beacon
  • Safety guard rails

Additional Options : Available upon request
