Aircraft PRM Medical Lift

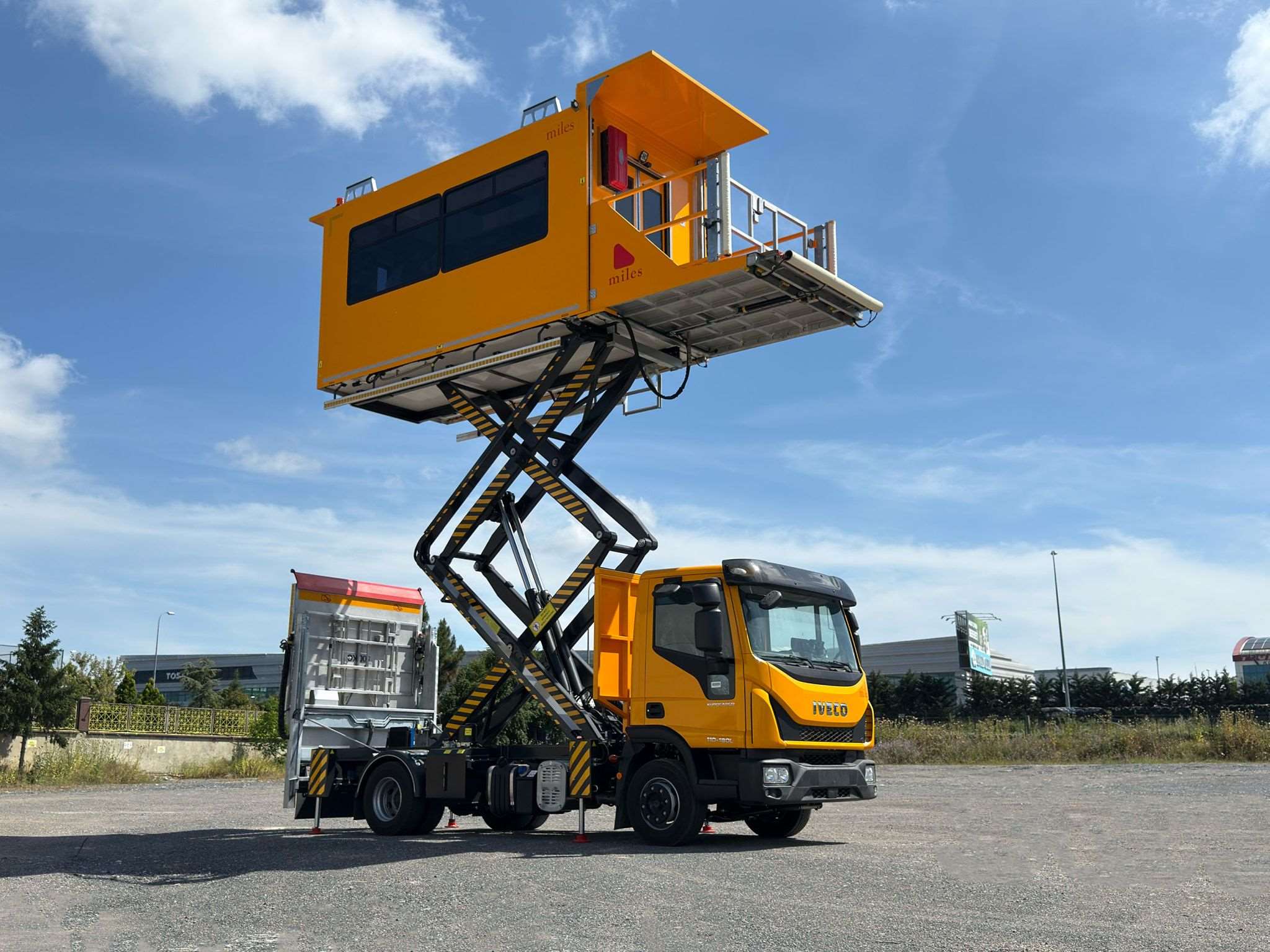

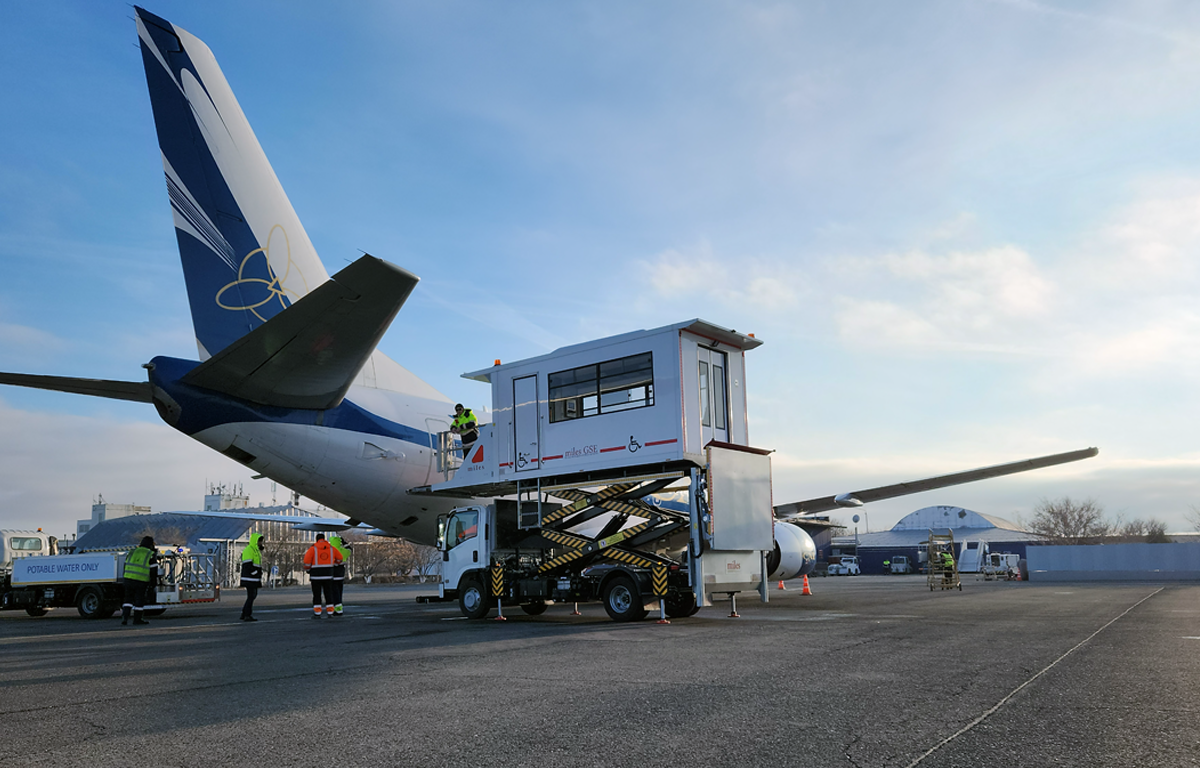

Miles 5041 Aircraft PRM Medical Lifts are in daily use at international airports worldwide for assisting medical crews in transferring passengers with reduced mobility to the aircraft and from the aircraft. After PRM passengers are received at ground level, PRM medical lift is fully raised and they can be transferred into the aircraft in the most comfortable manner possible. Miles GSE designs, manufactures and supplies high quality aircraft PRM medical lift or Ambulift to Airlines and Ground Handling Companies all around the world to meet the high standards of the aviation industry and customer’s own specific requirements.

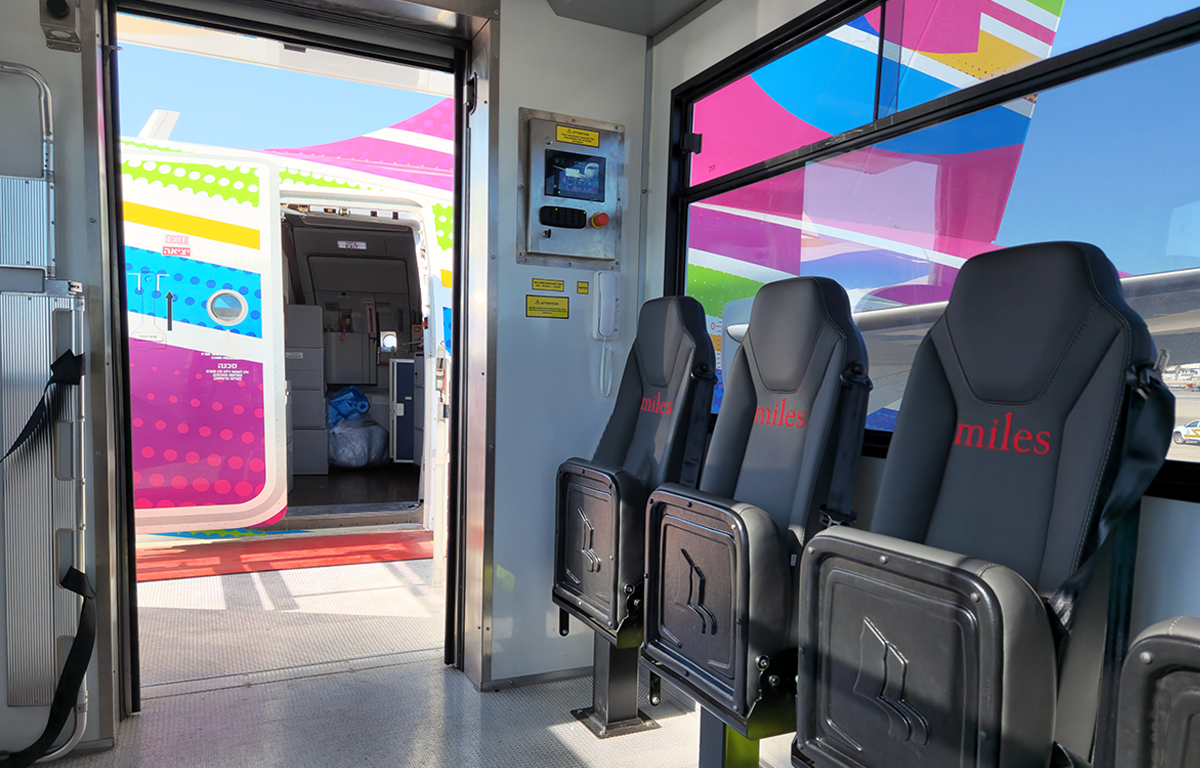

Miles aircraft PRM medical lifts are assembled on a truck mounted chassis with lifting van body and fully insulated GRP panels. The stainless steel and aluminum material variants used inside and outside the cabin ensure that the system is compatible with any working environment and runs smoothly. High quality hydraulic and electronical system components are offered to the customer to maintain the system reliability and efficiency at the highest level. All the movements of the system are controlled by limit sensors and automation ensuring safe and uninterrupted operation of the system.

In wanting to help our customers achieve uninterrupted operational excellence, Miles GSE has designed & manufactured high quality aircraft PRM medical lift truck which not only lessens the need for journeys between aircraft and medical cabinet, it significantly lowers maintenance costs and increase product life cycles through the use of high-tech durable components.

Model

Aircraft PRM Medical Lift (Miles 5041)

Full Cab

Type: Full Size Cab

Sill Height: 2700 mm - 5900 mm

Half Cab

Type: Half Size Cab

Sill height: 1400 mm - 5900 mm

Technical Specifications

Chassis: Standard commercial chassis (MAN, Mercedes-Benz, Iveco, Volvo, etc)

Capacity: 6 wheelchairs, 1 stretcher

Platform: Full width, half width, transverse

Scissor Mechanism: Miles scissors system with four hydraulic chassis stabilizers.

Van Body: Insulated G.R.P panels from 50mm - 100mm

Tail Lift: 1000kg (other payload upon request)

Electric System: 24V relay or PLC computer

Additional Options: Available upon request
